Wafer Holders

Electroplating

Holder Features & Functions

Dry contact system / Safe holding and sealing with 3 mm edge exclusion

Full scope contacting without electrolyte contact

Simple substrate replacement in seconds

Waferthickness tolerances ±100µ

Compensation of higher tolerances by using a foil

Standard Material PP or PEEK, on request Teflon and others

Flexholder for different wafer thickness possible

Standard Holder 1,2,3,4,5,6,8 & 12''

Other sizes and forms available

Optional an electrode could be installed to the holder

Holder Samples

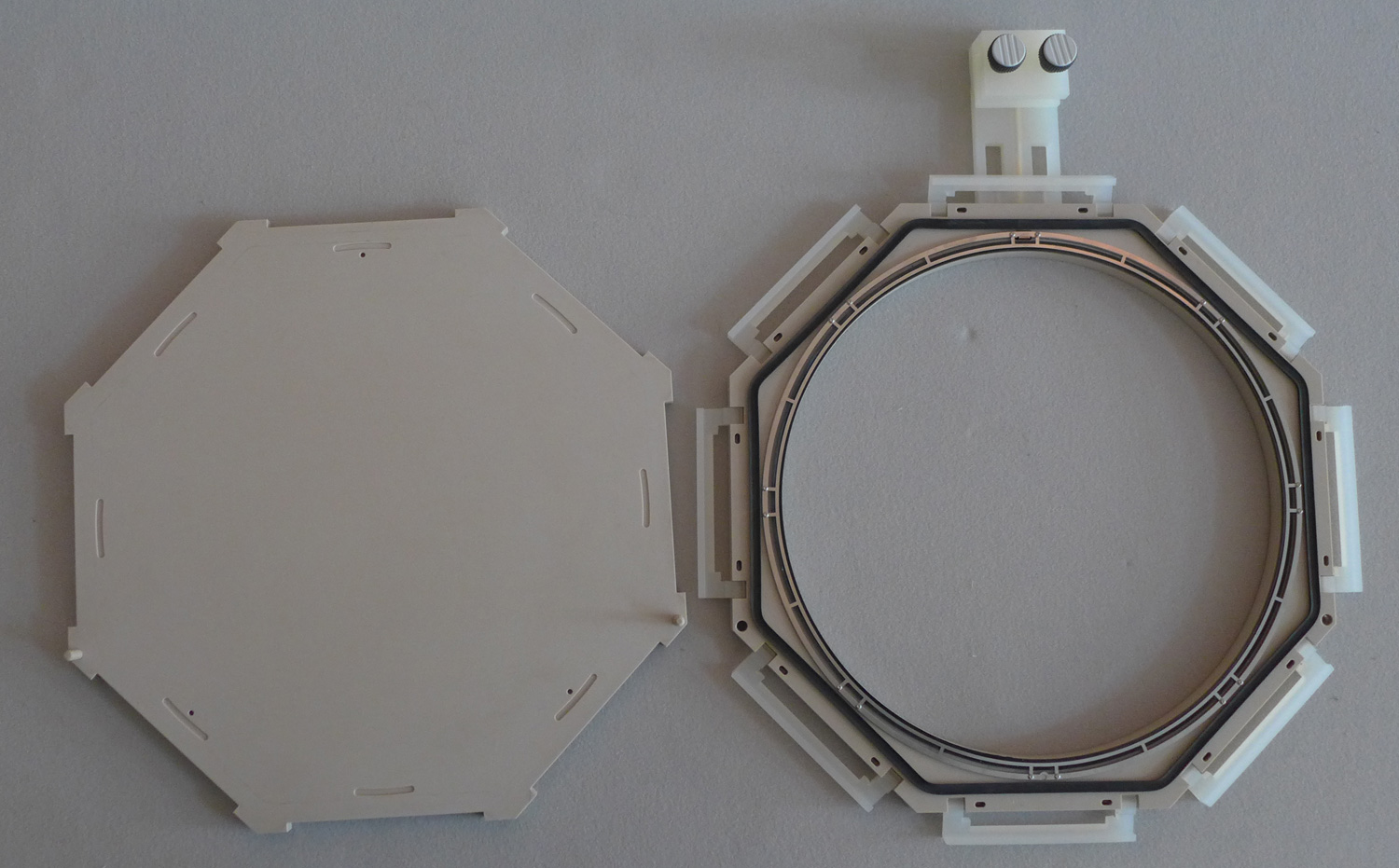

12″ Standard Holder

Electroplating

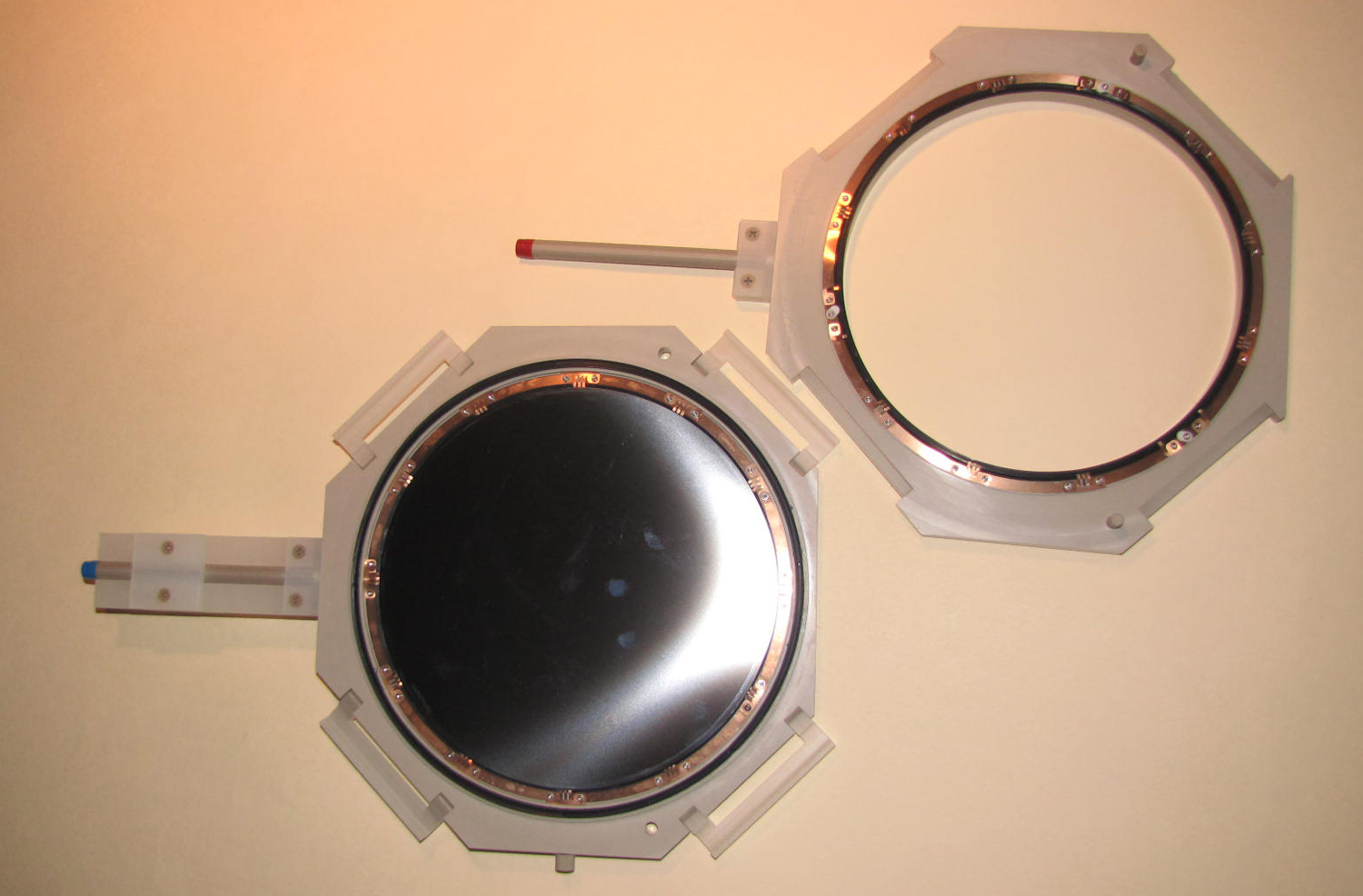

8″ Holder Double Side

Electroplating

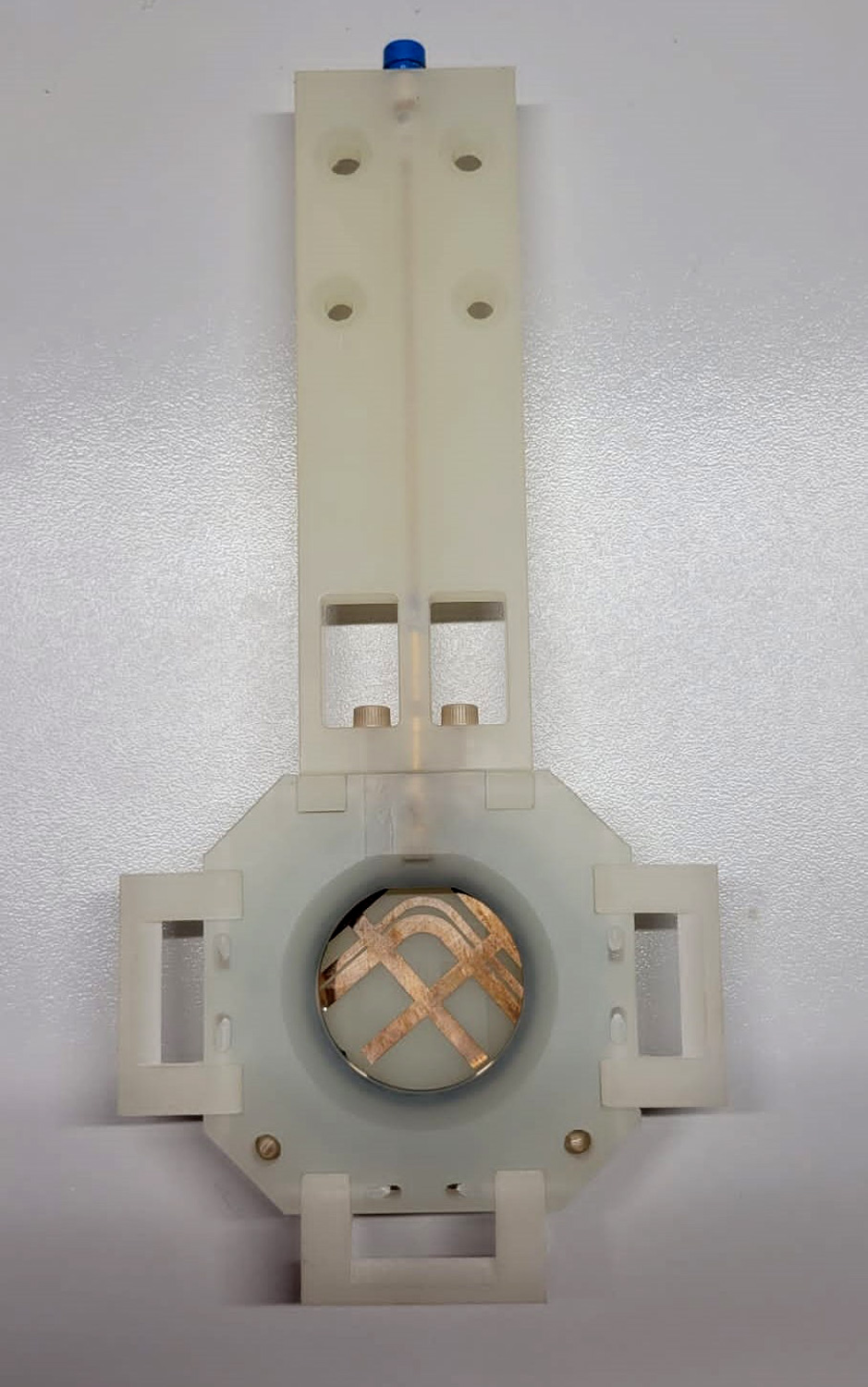

2″ Holder Backside Contact

Electroplating

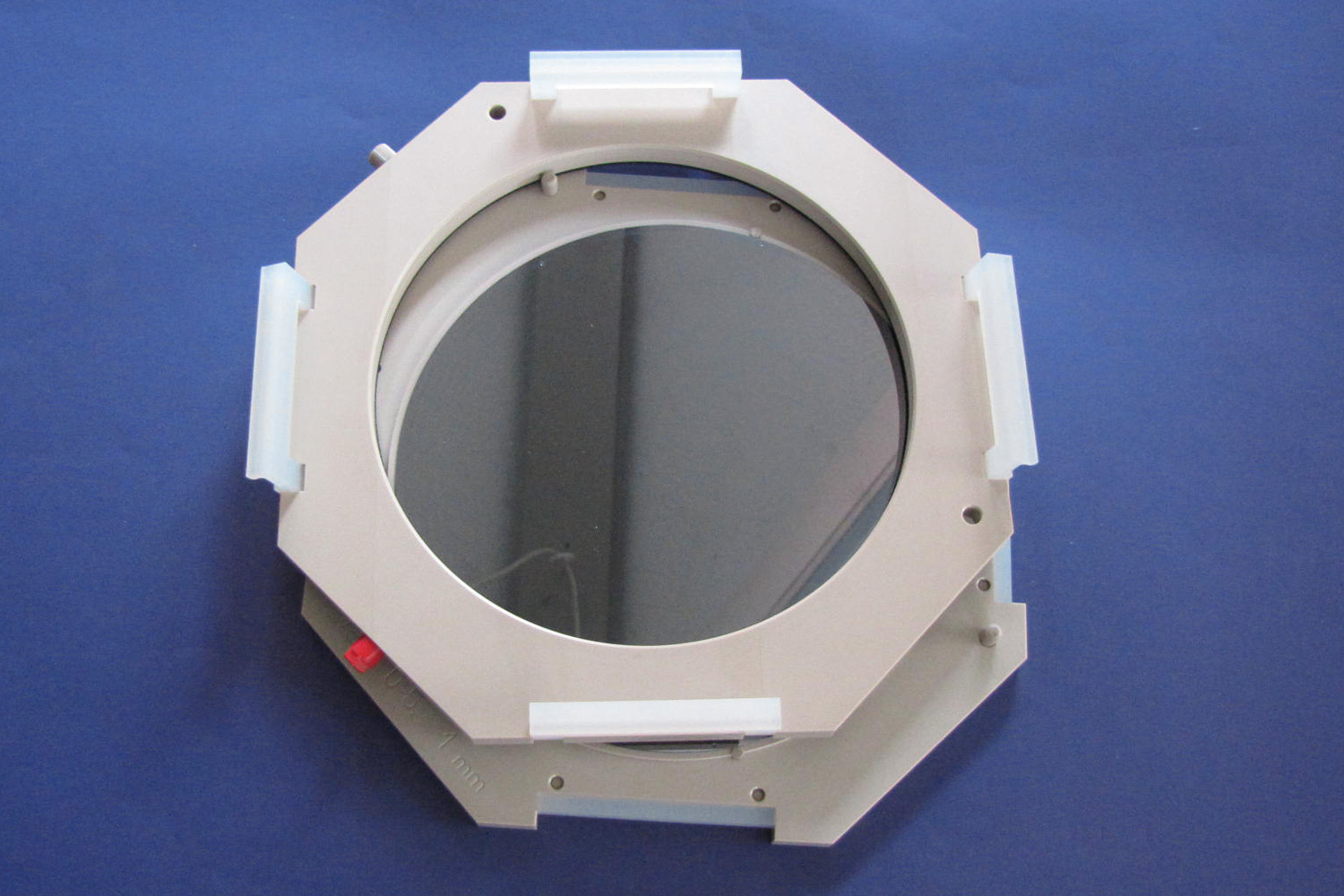

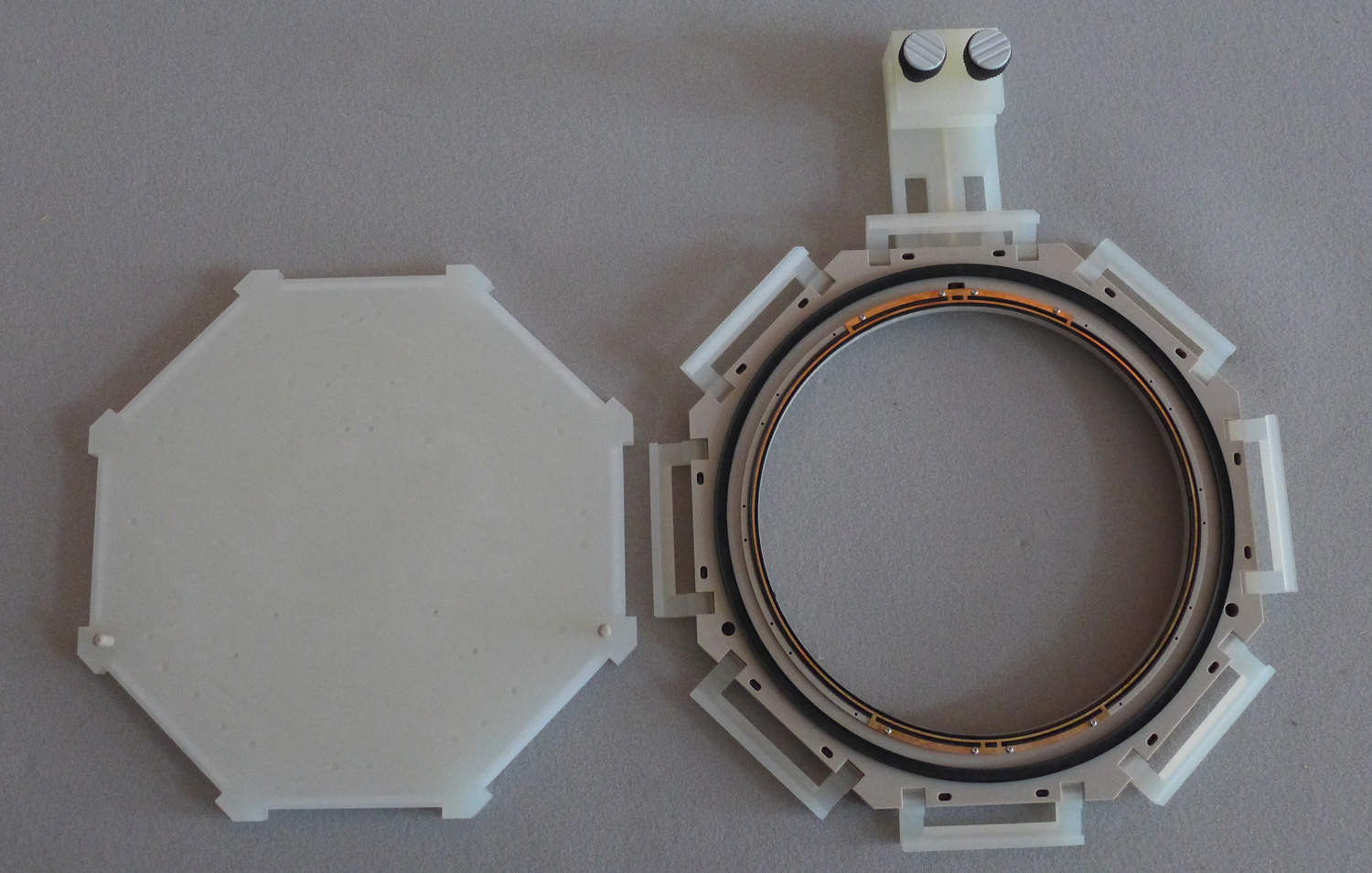

8″ Standard Holder

Electroplating

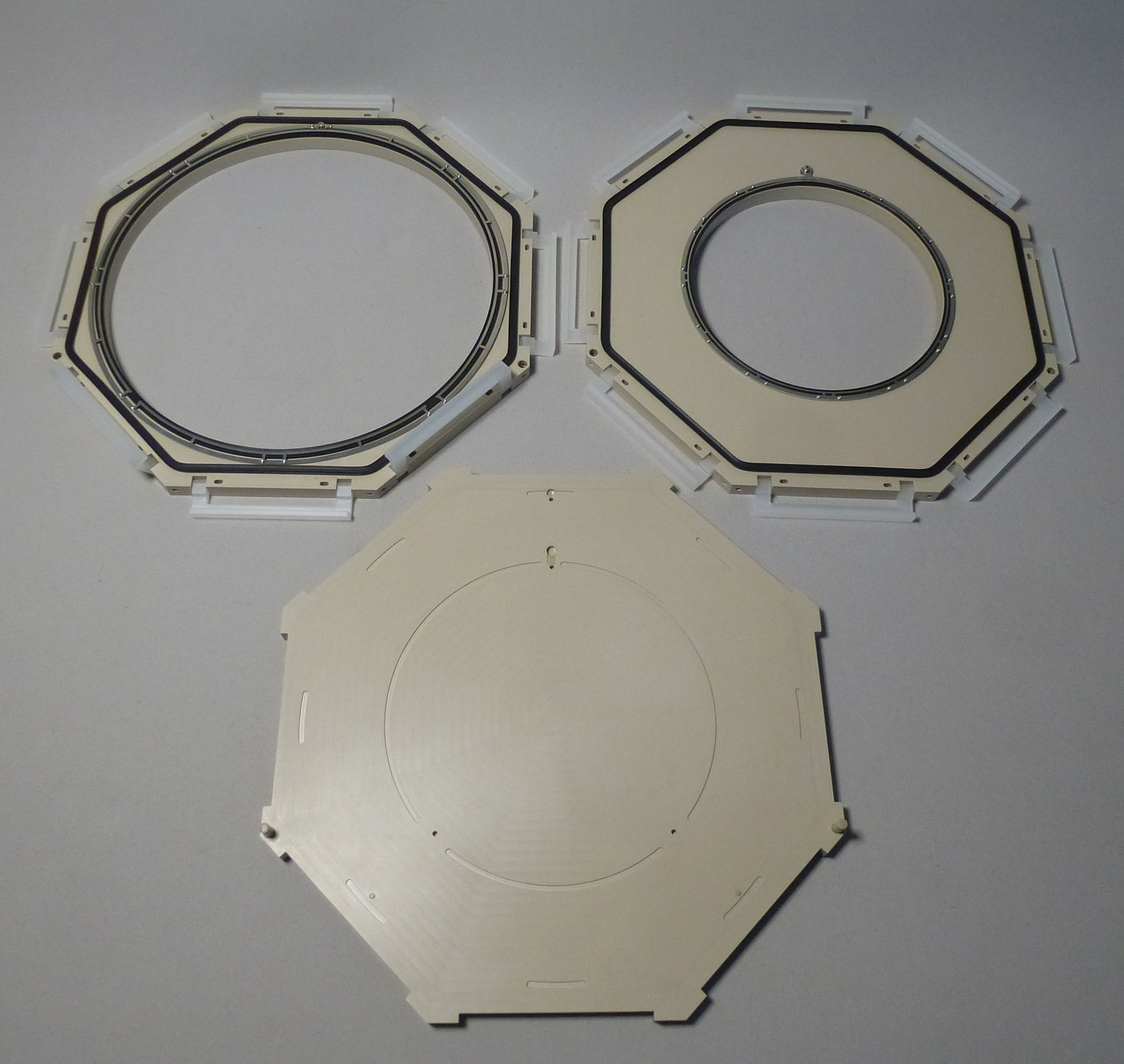

12″ Holder with 8″ Option

Electroplating

All components used are available as spare parts. If required, please contact us directly.
